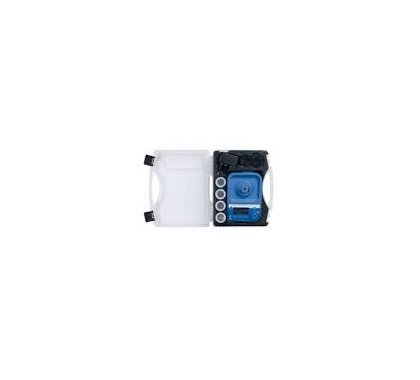

IKA ULTRA-TURRAXTube Drive Workstation
Workstation consists of ULTRA TURRAX® Tube Drive, 2 x ST-20, 2 x DT-20 incl. 1 removal hook for removal the rotor-stator unit, 2 x BMTvalue="20" unitname="g" style="margin: 0px; padding: 0px; ">-20 G / S, power supply
World first: Universal Disposable Disperser System with hermetically sealable disposable sample tubes. Protection and security for: Infectious sample materials, toxic substances, high-odour substances
Application areas: Human medicine, pathology, veterinary medicine, animal hygiene insti-tutes, Clinical diagnosis research, Foodstuffs testing laboratories, Diagnostic laboratories, Toxicology, Medical research, Pharmaceutical research, Biological research, Tumour biol-ogy, Immunology, Chemistry, Cosmetics
World first
High level of user safety
No possibility of cross-contamination
Quick and simple
Hygienic and clean
Disperse, stir, and grind using a single drive unit
Hermetically sealable disposable sample tubes
Covers with pierceable membranes available on request
Volumes from 2-15 ml
Suitable for individual use and use in series
Standardised working
Anti-locking function
Increases safety due to low voltage (24 V)
Chemical-resistant plastic
Worldwide service guaranteed by IKA®
Patent pending
|
IKA ULTRA-TURRAX® Tube Drive Workstation
|
|
電機輸入功率
|
20 W
|
|
電機輸出功率
|
17 W
|
|
最大粘度
|
5000 mPas
|
|
速度范圍
|
300 - 6000 1/min
|
|
轉(zhuǎn)速偏差
|
10 %
|
|
轉(zhuǎn)速控制
|
無級
|
|
轉(zhuǎn)速顯示
|
刻度
|
|
噪音(無分散頭)
|
50 dB(A)
|
|
工序類型
|
分批處理
|
|
外形尺寸
|
100 x 40 x value="160" unitname="mm" style="margin: 0px; padding: 0px; ">160 mm
|
|
重量
|
value=".75" unitname="kg" style="margin: 0px; padding: 0px; ">0.75 kg
|
|
允許環(huán)境溫度
|
5 - value="40" unitname="°C" style="margin: 0px; padding: 0px; ">40 °C
|
|
允許相對濕度
|
80 %
|
|
DIN EN 60529 保護方式
|
IP 20
|
|
電壓
|
100 - 240 V
|
|
頻率
|
50/60 Hz
|
|
儀器輸入功率
|
20 W
|
|
|
24 V=
|
|
|
800 mA
|
