用途:用于氣路系統中對含水介質進行干燥吸附處理。 特點:結構簡單,密封性好,干燥劑可再生。
D型干燥器詳細參數

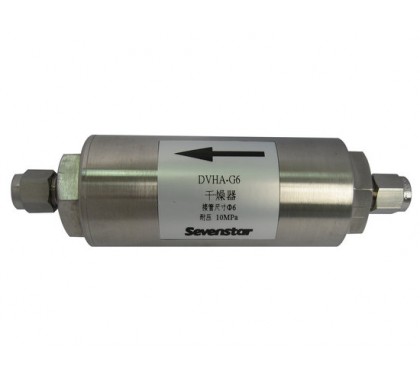

D型干燥器
用途:用于氣路系統中對含水介質進行干燥吸附處理。
特點:結構簡單,密封性好,干燥劑可再生。
D Desiccator
Application: Take out of the water in the gas.
Characteristic: Simple structure, Sealing good, Recycling desiccant
型 號 |
D□LB-GA |
D□LA-G6 |
D□HA-G6 |
Model |
耐壓 |
3MPa |
10MPa |
Max Pressure |
氣體流通量 |
>500SLM (0.05MPa) |
<500SLM (0.05MPa) |
Gas flow |
漏率 |
1×10-8sccsHe |
Leak Integrity |
吸附分子有效直徑 |
<5A |
Availability |
靜態吸附值 |
20% |
Adsorb rate |
再生溫度 |
180~350℃ |
Regenesis Temperature |
再生時間 |
3~6h |
Regenesis Time |
干燥劑含量 |
~100g |
~52g |
Content of dryer |
密封材料 |
氟橡膠Viton;氯丁橡膠Neoprene |
Materials |
標準接頭形式 |
Swagelokφ10 |
Swagelokφ6 |
Fittings |
重量 |
3Kg |
0.6 Kg |
0.7 Kg |
Weight |
外形尺寸
型號Model |
L |
D |
D□LA-G6 |
123 |
51 |
D□HA-G6 |
130 |
41 |
D□LB-GA |
195 |
154 |
