用途:用于氣路系統中對介質進行過濾處理。 特點:結構簡單,密封性好。
詳細參數

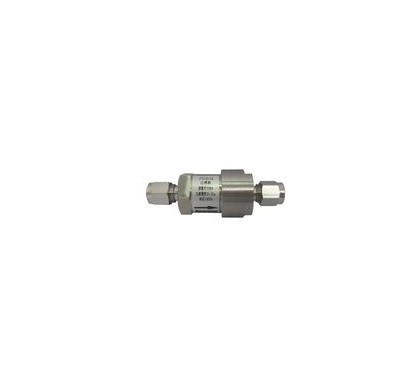

F型過濾器
用途:用于氣路系統中對介質進行過濾處理。
特點:結構簡單,密封性好。
F filter
Application: Take out of the impurity in the gas
Characteristic: Simple structure, sealing good
型 號 |
F□L |
F□H |
Model |
過濾精度 |
5-10μ,10-20μ,20-30μ |
Filtration Hole |
耐壓 |
1MPa |
10MPa |
Max Pressure |
氣體流通量 |
>30SLM (0.05MPa) |
>65SLM (0.05MPa) |
Gas flow |
漏率 |
1×10-8sccsHe |
Leak Integrity |
密封材料 |
氟橡膠Viton;氯丁橡膠Neoprene |
Materials |
標準接頭形式 |
Swagelokφ3;Swagelokφ6;Swagelok1/4 |
Fittings |
重量 |
0.13Kg |
0.18Kg |
Weight |
外形尺寸
型號Model |
L |
D |
F□L |
67 |
30 |
F□H |
80 |
27 |
