用途:由外部電路驅動可比例調節通道氣體流通流量。 特點:反應快,重復性好,精度高,密封性好。
DT2B型電磁調節閥詳細參數

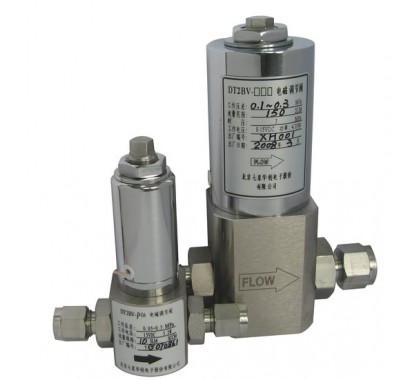

DT2B型電磁調節閥
用途:由外部電路驅動可比例調節通道氣體流通流量。
特點:反應快,重復性好,精度高,密封性好。
DT2B electromagnetic control valve
Application: regulate the gas flow by the control voltage
Characteristic: Fast response, good repeatability, high accuracy, sealing good
型 號 |
DT2B A~R |
DT2B S~Z |
Model |
量程規格(N2) |
5,10,20,30,50,100,200,300,500SCCM
1,2,3,5,10,20,30 SLM |
20,30,50,100,200,250,300SLM |
Ranges of Flow(N2) |
耐壓 |
3MPa |
Max Pressure |
工作壓差 |
≤10SLM:0.10.5MPa
>10SLM:0.1~0.3MPa |
≤30SLM:0.05~0.3MPa>30SLM
&≤100SLM 0.10~0.3MPa>100SLM:0.15~0.3MPa |
Operation Pressure |
漏率 |
1×10-8sccsHe |
Leak Integrity |
密封材料 |
氟橡膠Viton,氯丁橡膠Neoprene,
硅橡膠silicon modified rubber |
Materials |
驅動電源 |
0~15DVC |
Power Supply |
接口尺寸 |
Swagelokφ3;φ6;1/4" |
Swagelokφ6;1/4";φ8;3/8";φ10 |
Fittings |
重量 |
0.55Kg |
1.8Kg |
Weight |
