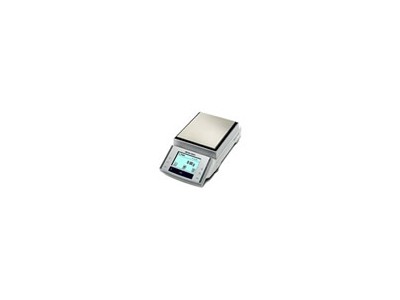

METTLER梅特勒精密天平XS802S
型號：XS802S
顯示屏：彩色觸摸屏
最大秤量：810g
可讀性：0.01g
校準方式：內部校準

儀器簡介：

XS超越系列專業型精密天平是專為提高稱量效率而設計，體現了前所未有的速度、可靠性和操作便利。
* 采用高速單模塊稱量傳感器（MonoBlocHighSpeed），以最快速度傳遞準確稱量結果，具有良好的抗沖擊、抗過載性能。
* 全自動校準技術（FACT）——溫度漂移觸發的自動內部校準，確保稱量結果的準確性。
* 觸摸顯示屏（Touch screen），方便天平稱量菜單和參數設置。
* 具有狀態顯示的外置紅外感應器選件（ErgoSens），實現天平無需用手接觸的操作。
* 內置RS232通訊接口和靈活的6種通訊接口選件（RS232、LocalCan、BTS、PS/2、Ethernet和MiniMettler），方便連接打印和電腦等外圍設備。
* 優化天平適應性的稱量參數設置，滿足不同稱量環境要求。
* 具有簡單稱量、統計稱量、公式稱量、計件稱量、百分比稱量、密度測定以及優化的動態稱量等內置應用程序。
* 通過E-Loader軟件，實現天平軟件的即時更新

規格 - XS802S 精密天平

最大稱量范圍	810 g
可讀性	10 mg
去皮范圍	0...810 g
重復性	8 mg
線性	20 mg
偏心負載	20 mg
內部砝碼校準	FACT, fully automatic calibration technology
外部砝碼校準	custom weights
靈敏度精度	7.5x10^-5·R_nt
溫度靈敏度系數	3x10^-6/°C·R_nt
靈敏度穩定性	2.5x10^-5/a·R_nt
穩定時間（典型）	1.2 s
接口更新速率	23/s
天平尺寸	366 x 194 x 96 mm (W x D x H)
秤盤尺寸	170 x 205 mm (W x D)
物料號 (s)	11130168
商業名稱	XS802S/A,XS802S/M

Balance model	XS802S	XS2002S	XS4002S	XS4002SDR	XS6002S	XS6002SDR
Limit values
Maximum capacity; fine range	810 g; –	2.1 kg; –	4.1 kg; –	4.1 kg; 0.8 kg	6.1 kg; –	6.1 kg; 1.2 kg
Readability; fine range	10 mg; –	10 mg; –	10 mg; –	100mg;10 mg	10 mg; –	100mg;10 mg
Repeatability 1); fine range	8 mg; –	8 mg; –	8 mg; –	60 mg; 8 mg	8 mg; –	60 mg; 8 mg
Linearity deviation	20 mg	20 mg	20 mg	60 mg	20 mg	60 mg
Sensitivity offset (test weight)	60 mg (800 g)	50 mg (2 kg)	60 mg (4 kg)	60 mg (4 kg)	60 mg (6 kg)	150 mg (6 kg)
Typical values
Repeatability; fine range	4 mg; –	4 mg; –	4 mg; –	40 mg; 4 mg	4 mg; –	40 mg; 4 mg
Linearity deviation	7 mg	7 mg	7 mg	7 mg	7 mg	7 mg
Sensitivity offset (test weight)	32 mg (800 g)	32 mg (2 kg)	32 mg (4 kg)	32 mg (4 kg)	30 mg (6 kg)	30 mg (6 kg)
Minimum sample weight2); fine range	12 g; –	12 g; –	12 g; –	120 g; 12 g	12 g; –	120 g; 12 g
Minimum sample weight3); fine range	800 mg; –	800 mg; –	800 mg; –	8 g; 0.8 g	800 mg; –	8 g; 0.8 g
Settling time	1.2 s	1.2 s	1.2 s	1.2 s	1.2 s	1.2 s
Balance dimensions (WxDxH)	194x366x96 mm
Weighing pan dimensions (WxD)	170x205 mm

Balance model	XS203S	XS403S	XS603S	XS603SDR	XS1003S
Limit values
Maximum capacity; fine range	210 g; –	410 g; –	610 g; –	610 g; 120 g	1010 g; –
Readability; fine range	1 mg; –	1 mg; –	1 mg; –	10 mg; 1 mg	1 mg; –
Repeatability 1); fine range	0.9 mg; –	0.9 mg; –	0.9 mg; –	6 mg; 1 mg	0.8 mg; –
Linearity deviation	2 mg	2 mg	2 mg	6 mg	2 mg
Sensitivity offset (test weight)	5 mg (200 g)	6 mg (400 g)	4.5mg (600 g)	9 mg (600 g)	5 mg (1000 g)
Typical values
Repeatability; fine range	0.5 mg; –	0.5 mg; –	0.5 mg; –	4 mg; 0.6 mg	0.4 mg; –
Linearity deviation	0.7 mg	0.7 mg	0.7 mg	0.7 mg	0.7 mg
Sensitivity offset (test weight)	3.2mg (200 g)	3.2mg (400 g)	3 mg (600 g)	6 mg (600 g)	3 mg (1000 g)
Minimum sample weight2); fine range	1.5 g; –	1.5 g; –	1.5 g; –	12 g; 1.8 g	1.2 g; –
Minimum sample weight3); fine range	100 mg; –	100 mg; –	100 mg; –	800 mg; 120 mg	80 mg; –
Settling time	1.5 s	1.5 s	1.5 s	1.5 s	1.5 s
Balance dimensions (WxDxH)	198x366x276 mm
Weighing pan dimensions (WxD)	127x127 mm

Balance model	XS4001S	XS6001S	XS8001S	XS10001S
Limit values
Maximum capacity; fine range	4.1 kg; –	6.1 kg; –	8.1 kg; –	10.1 kg; –
Readability; fine range	100 mg; –	100 mg; –	100 mg; –	100 mg; –
Repeatability 1); fine range	80 mg; –	80 mg; –	80 mg; –	80 mg; –
Linearity deviation	60 mg	60 mg	100 mg	100 mg
Sensitivity offset (test weight)	240 mg (4 kg)	240 mg (6 kg)	600 mg (8 kg)	500 mg (10 kg)
Typical values
Repeatability; fine range	40 mg; –	40 mg; –	40 mg; –	40 mg; –
Linearity deviation	20 mg	19 mg	36 mg	34 mg
Sensitivity offset (test weight)	160 mg (4 kg)	140 mg (6 kg)	320 mg (8 kg)	300 mg (10 kg)
Minimum sample weight2); fine range	120 g; –	120 g; –	120 g; –	120 g; –
Minimum sample weight3); fine range	8 g; –	8 g; –	8 g; –	8 g; –
Settling time	0.8 s	0.8 s	1 s	1 s
Balance dimensions (WxDxH)	194x366x96 mm
Weighing pan dimensions (WxD)	190x223 mm

產品	最大稱量范圍	可讀性	重復性	秤盤尺寸
XS203S 精密天平	210 g	1 mg	0.9 mg	127 x 127 mm (W x D)
XS403S 精密天平	410 g	1 mg	0.9 mg	127 x 127 mm (W x D)
XS603S 精密天平	610 g	1 mg	0.9 mg	127 x 127 mm (W x D)
XS1003S 精密天平	1010 g	1 mg	0.8 mg	127 x 127 mm (W x D)
XS603S DR 精密天平	120 g / 610 g	1 mg / 10 mg	6 mg	127 x 127 mm (W x D)
XS2002S 精密天平	2100 g	10 mg	8 mg	170 x 205 mm (W x D)
XS4002S 精密天平	4100 g	10 mg	8 mg	170 x 205 mm (W x D)
XS4002S DR 精密天平	800 g / 4100 g	10 mg / 100 mg	60 mg	170 x 205 mm (W x D)
XS6002S 精密天平	6100 g	10 mg	8 mg	170 x 205 mm (W x D)
XS6002S DR 精密天平	1200 g / 6100 g	10 mg / 100 mg	60 mg	170 x 205 mm (W x D)
XS802S 精密天平	810 g	10 mg	8 mg	170 x 205 mm (W x D)
XS4001S 精密天平	4100 g	100 mg	80 mg	190 x 223 mm (W x D)
XS6001S 精密天平	6100 g	100 mg	80 mg	190 x 223 mm (W x D)
XS8001S 精密天平	8100 g	100 mg	80 mg	190 x 223 mm (W x D)
XS10001S 精密天平	10100 g	100 mg	80 mg	190 x 223 mm (W x D)
XS8001L 精密天平	8100 g	0.1 g	80 mg	280 x 360 mm (W x D)
XS16001L 精密天平	16100 g	0.1 g	80 mg	280 x 360 mm (W x D)
XS32001L 精密天平	32100 g	0.1 g	80 mg	280 x 360 mm (W x D)
XS32001L DR 精密天平	6400 g / 32100 g	0.1 g / 1 g	0.6 g	280 x 360 mm (W x D)
XS16000L 精密天平	16100 g	1 g	0.6 g	280 x 360 mm (W x D)
XS32000L 精密天平	32100 g	1 g	0.6 g	280 x 360 mm (W x D)
